Pivot and Align Settings for Wall and Pillar parts

The BuildingGen plugin uses the pivot points of the building parts to position each one correctly at the sides or corners of the unit space. Therefore, it's crucial to ensure that the pivot point is accurately placed for the wall and pillar parts.

Adjusting the Wall and Pillar Pivot positions

1. After applying textures to your imported building parts, select the walls and pillars you wish to edit their pivot position. Navigate to Modify > Attribute > Pivot to do so.

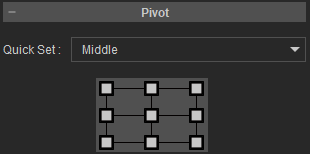

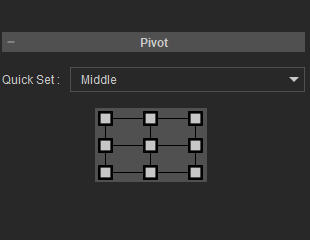

2. In the Pivot settings, select the options you want the pivot to position on the unit part.
   • Wall part: Quick Set Front > Lower Center.
   • Pillar part: Quick Set Middle > Lower Center

     Note:

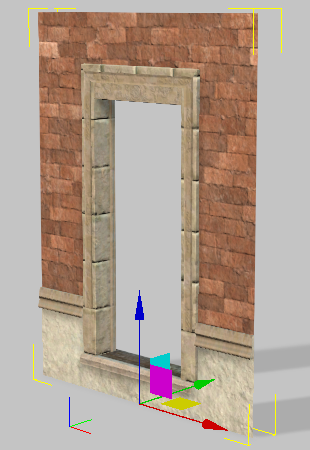

     • The wall part's pivot point functions as its base center. When building with the blueprint, BuildingGen will place the parts at the four bottom edges of the unit’s sides.

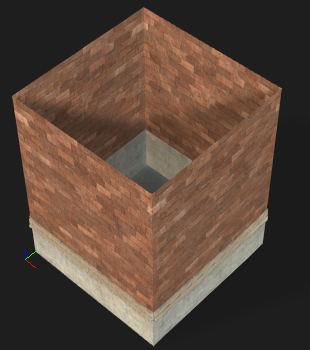

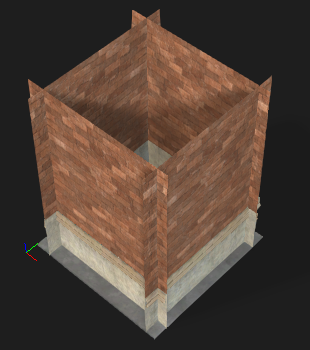

     Correct pivoting allows the walls to align with each other without issues.	Incorrect pivoting can cause the walls to clip into one another.

     • The pillar's pivot point functions as its base center. When building with the blueprint, BuildingGen will place each pillars at the four bottom corners of the unit.

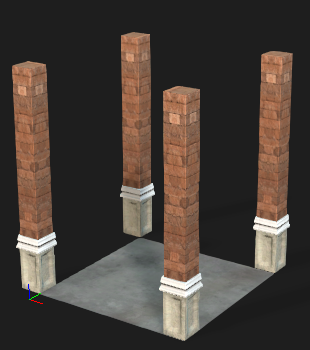

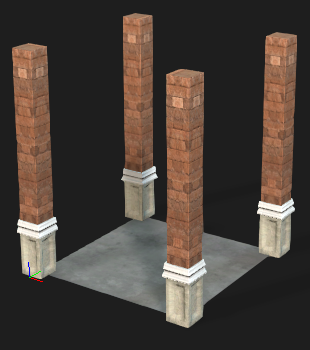

     Pillars with correct pivot point.	Pillar with incorrect pivot point.

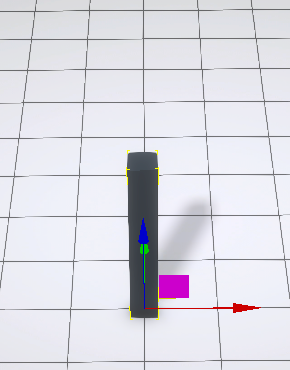

3. Use Rotate in the 3d gizmo to make sure the front side of the wall is facing the -Y axis as this direction is the front side of the environment.

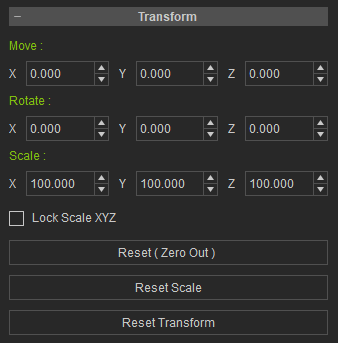

4. Navigate to Modify > Attribute > Transform and click the Reset Transform button to save the current scale setting as the new default scale. Click Reset (Zero Out) to set the position and rotation of the selected part to zero on all three axes, moving the part to the World Origin.

   Note:

   The default scale setting is 100 cm for all three axes.

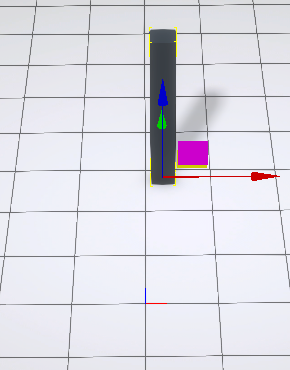

   Before using Reset (Zero Out).	After using Reset (Zero Out).

Using the Floor Part to Verify Correct Alignment and Pivot Positioning of Walls and Pillars

To verify that the pivot position for the wall and pillar parts is correctly positioned, use the floor part to align and check if the parts pivot has any issues and adjust accordingly.

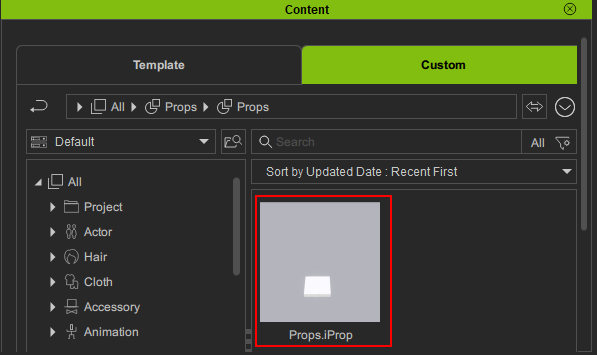

1. Before starting to align the wall and pillar parts make sure the floor part is already correctly pivoted. Use the cursor to double-click on the floor thumbnail to load the part onto the scene at the World Origin.

2. Before using the Align to function to align the parts, select the floor and navigate to Modify > Attribute > Pivot.

3. Change the floor part pivot position temporarily to where you want the walls and pillars to align.

   For wall parts: Quick Set Front > Upper Center	For pillar parts: Quick Set Middle > Upper Right

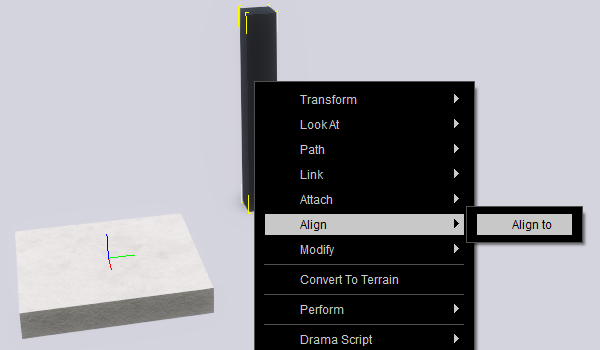

4. After the pivot position is completed right-click the wall or pillar and go to Align > Align to.

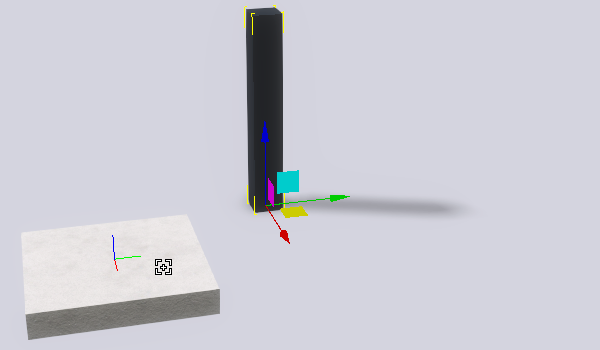

5. Select the floor part with the cursor.

6. The Align to dialog box will appear. Enable all the selections in Move, and select Pivot in Reference Point. In the viewport, the prop will be repositioned in realtime. Click OK to confirm your selection and close the dialog box.

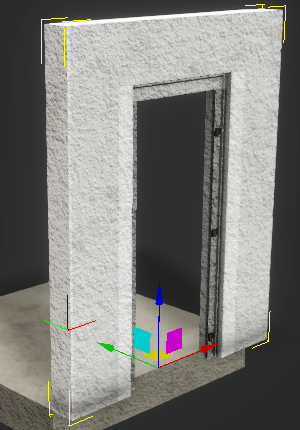

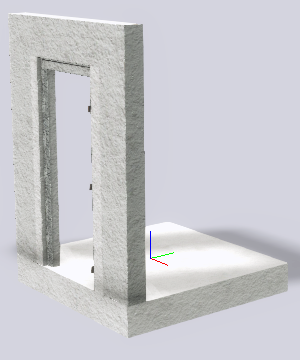

   The wall part will align with the side edges of the floor, where the pivot position is set.	The pillar part will align with the corner of the floor, where the pivot position is set.

   Note:

   • Check if the wall and the floor parts are correctly aligned, the edge of the wall should be aligned with the side edge of the floor.

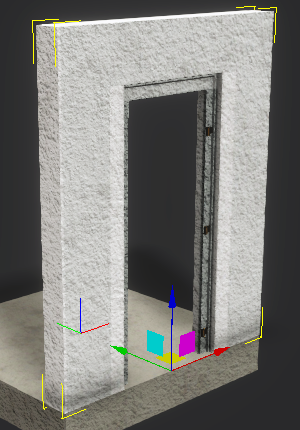

     The edges of the wall and the side edge of the floor part are properly aligned.	The edges of the wall extend over the side of the floor part due to incorrect wall pivot settings.

   • Check if the pillar and the floor part are correctly aligned, the pillar part’s pivot point center should be aligned with the floor part’s edge.

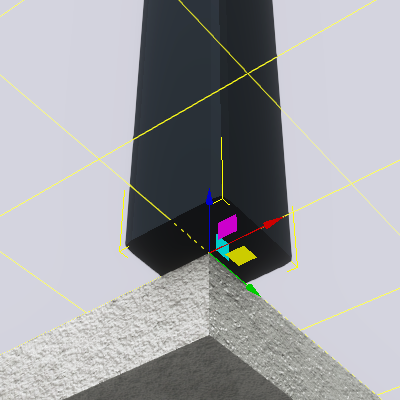

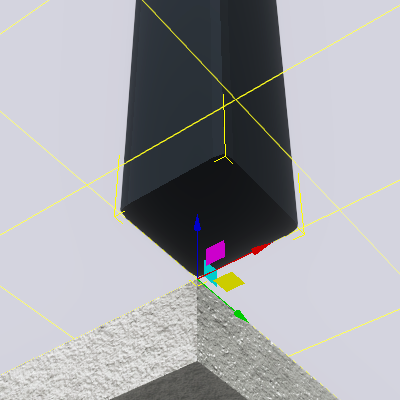

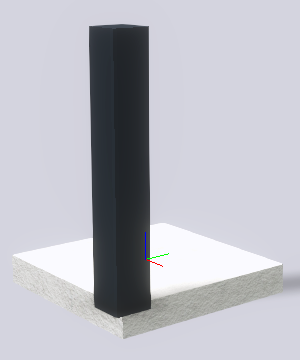

     The center of the pillar part is aligned with the corner edge of the floor part.	The center of the pillar part is misaligned with the corner edge of the floor part, due to incorrect pillar pivot settings.

7. Choose the aligned part in the viewport and save it in the Custom tab. Click this link to learn how to save your building assets.

The saved parts will later be used within the BuildingGen Packager as building parts for the chosen building styles.
