Import External Sources and Apply Textures

The BuildingGen plugin uses a modular building process with building part instances to create buildings. Therefore, external assets bought from online stores or generated using other 3D software must include enough components to convert into unit parts (such as floor, wall, pillar, and child element) for building creation using the plugin.

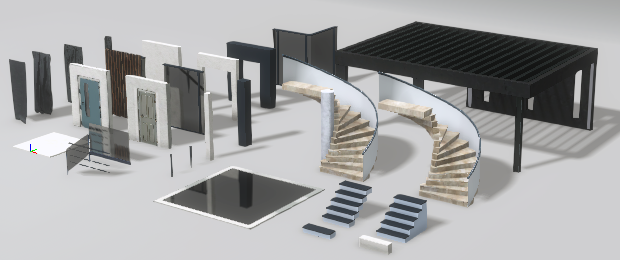

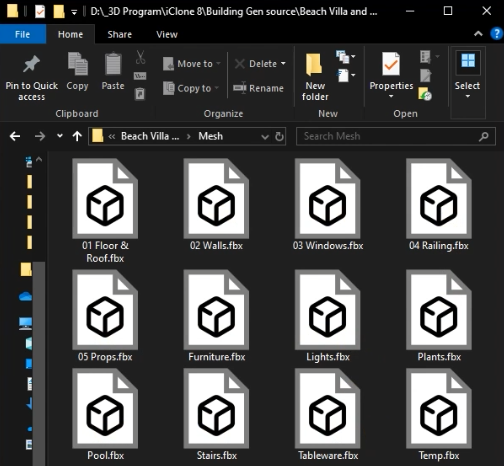

  1. Open iClone, locate the file where you keep your building assets, and drag and drop the floor model into the viewport.

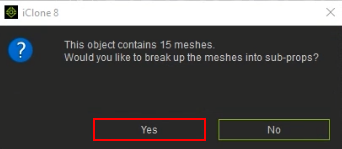

    2. If a single file contains multiple meshes, a pop-up will appear. Click Yes to separate the meshes, as you will need to edit them individually.

    Note: When importing any mesh into iClone, it will automatically convert it into .iProp for better cohesion with the tools within iClone.

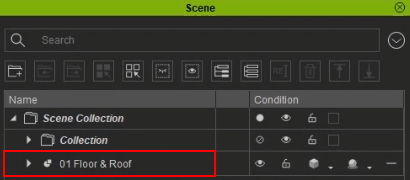

  2. Navigate to Scene > Name and select your imported meshes Collection tab in the Scene tree.
  3. In the Condition column open the Render State drop-down menu and select the Wireframe option.

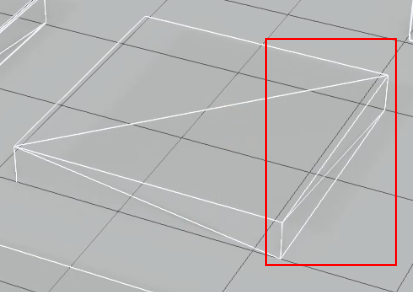

    4. It's recommended to use assets for unit parts with sharp edges instead of rounded edges. This ensures seamless connections between each floor mesh without any gaps.

    Note: The wireframe setting makes it easier to identify whether the mesh edges are sharp or rounded.

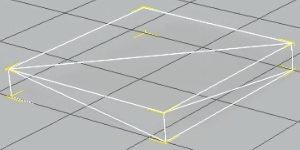

    Sharp mesh edges.

    Sharp mesh edges.

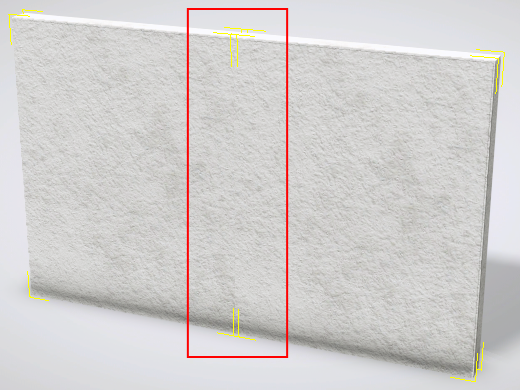

    2 wall meshes with sharp edges align together, leaving no gaps in between.

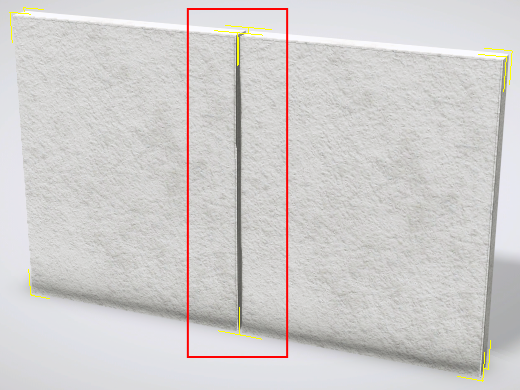

    2 wall meshes with rounded edges align together, leaving gaps in between.

    For consistent building parts, opt for meshes with uniform widths for walls and floors, and heights for pillars and walls. This ensures seamless alignment and avoids protrusions during building creation. For guidance on measuring part dimensions, refer to this page for utilizing grids in iClone.

    The floor parts currently used as examples have dimensions of 200 cm width and 200 cm length.

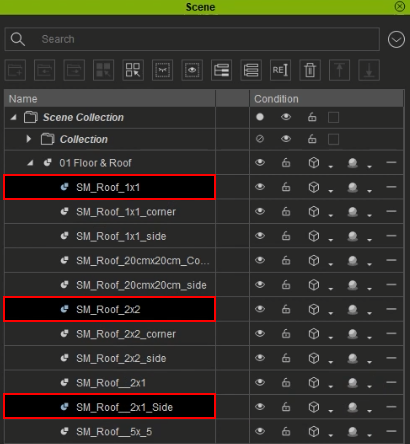

  4. In the Scene panel select the floor meshes you want to utilize.

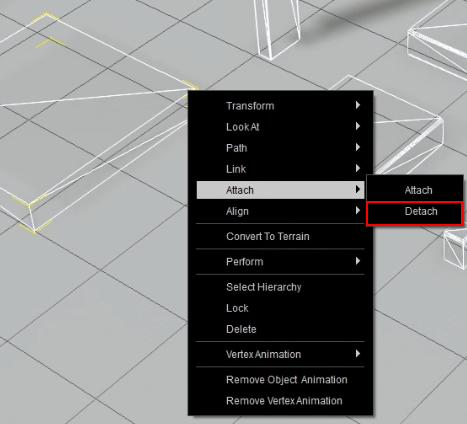

  5. In the viewport right-click the selected mesh, and in the drop-down menu go to Attach > Detach to separate the selected meshes.

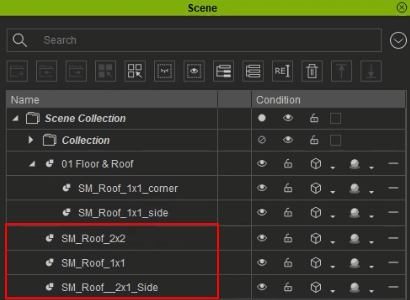

    6. In the scene tree, you will see the selected meshes are detached from the original collection.

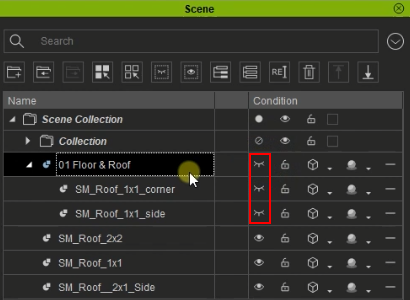

  6. Hide the rest of the unused meshes by clicking the hide icon.
  7. Select the detached meshes and change the Render State setting back to the Normal option.

    8. Wireframe render setting.

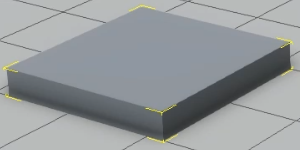

    Normal render setting.

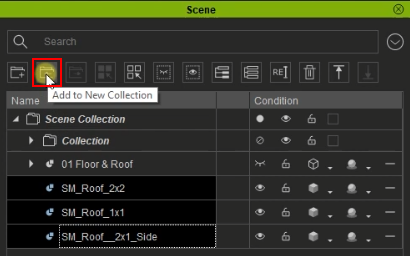

    For better organization, select detached meshes in the scene tree and use the Add to New Collection icon to create a collection group to store the imported meshes.

  8. Choose a floor mesh, then go to Modify > Material > Texture Settings.

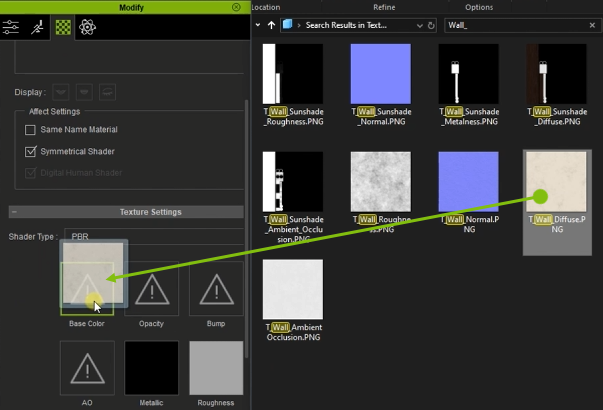

  9. Import the texture maps that are available for your selected mesh by dragging and dropping them into the correct texture type in Texture Settings.

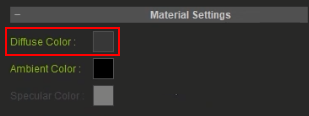

  10. After you have completed importing your texture maps, go to Material Settings and click Diffuse Color.

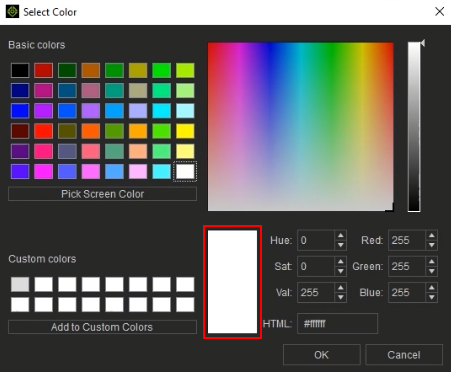

    11. Change the color to white to showcase your model's texture fully, without any other color influence.

  11. In Material List select the Pick Material icon then select your texturized mesh to copy its texture and material settings.

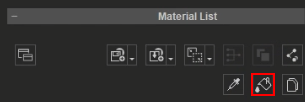

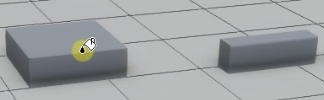

  12. Now select the Paint Material icon then click the meshes in the viewport to apply the copied texture maps and settings.

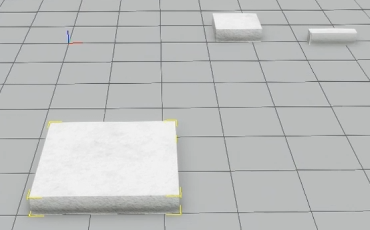

    13. The floor meshes are now all applied with the textures you want.

  13. Repeat the same process for the rest of the parts you want to include in your building style.
  14. To assign the correct pivot point for each of your unit parts please refer to the links below.
