Grid Section
When setting a Character Creator scene, it may be useful to draw a grid to represent the floor (X - Y plane).

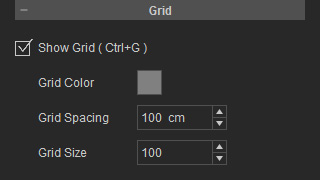

Show Grid
If you want to show the grid in the 3D viewer, you can check the Show Grid box. Alternatively, you can press Ctrl + G to toggle the grid.
![]() |
![]() |

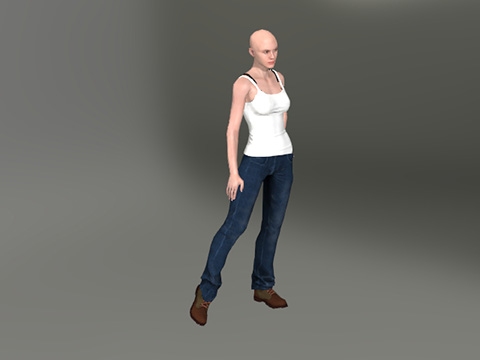

Grid Off |

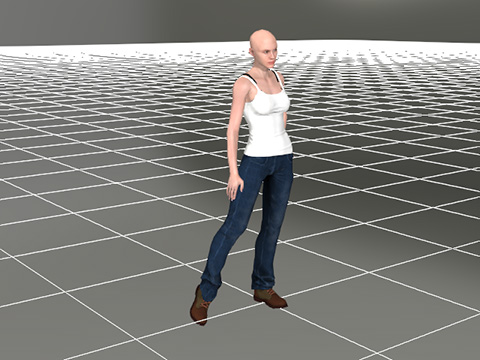

Grid On |
Grid Color
You can change the color of the grid by using the color picker.
![]() |
![]() |
The default grid color. |

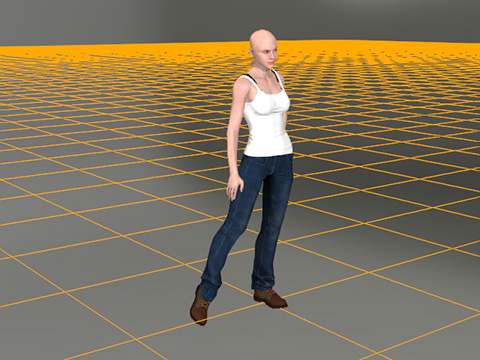

The grid color changed. |
Grid Spacing
You may also change the Grid Spacing value for the size of the grid cell.
![]() |
![]() |

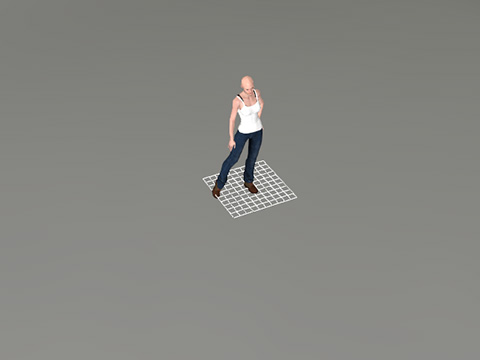

The grid spacing = 10 |
The grid spacing = 50 |
Grid Size
The Grid Size decides the number of the grid cells on both sides of the gird.
![]() |
![]() |

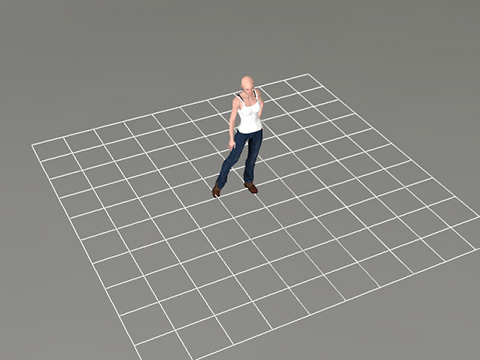

Grid size = 10 |

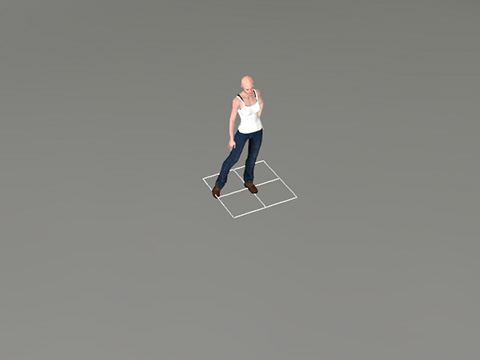

Grid size = 2 |
