Utilizing Non-linear Sliders for Facial Motion Capture

The HD and Extended Plus Facial Profiles introduces 52 and 50 non-linear sliders for realistic facial motion capturing results by enhancing the expression details and fixing expression flaws by different combination of facial feature expression morphing sliders.

• 52 and 50 non-linear sliders for HD and Extended Plus facial profiles. Please check out the differences before and after utilizing the non-linear sliders.

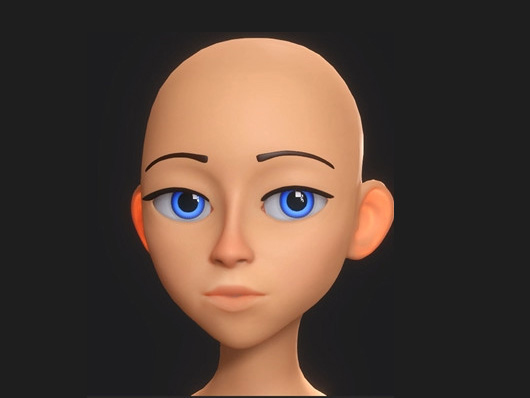

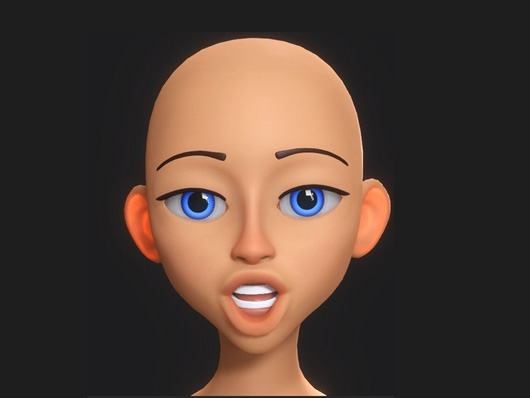

  Left: Without non-linear influence. Mouth expression flaws appear occasionally

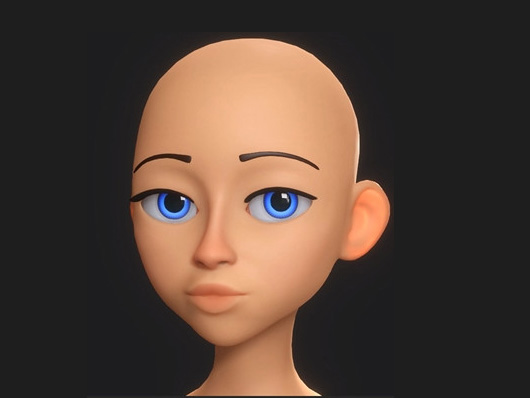

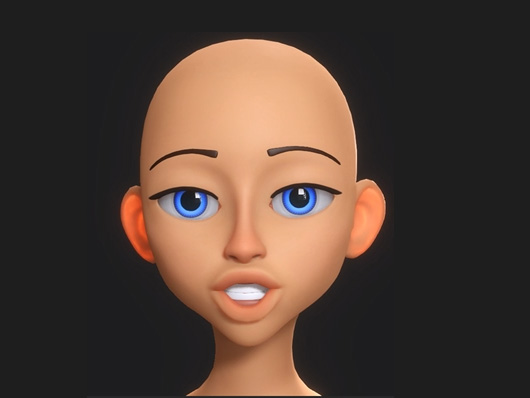

  Right: With non-linear influence. Mouth expression flaws are fixed up.


  Full face	Mouth only

• Maps the iPhone ARKit 52 blend shapes that presents talking animations in realism and drives sophisticated facial animations from minimal facial signal.
  • Lip opening and teeth opening can operate independently instead of the traditional linked behavior.
  • Enhances the lipsync accuracy and bring sticky lips effects.
  Inspect the animation with or without the non-linear slider effects.

• Correct some specific facial expressions (take Pucker and Funnel as examples):
  • Pucker

    Without non-linear influence: Puckers less.	With non-linear influence: Puckers more.

  • Funnel

    Without non-linear influence: Opening mouth drives the jaw to open	With non-linear influence: Opening mouth does not drive the jaw to open
