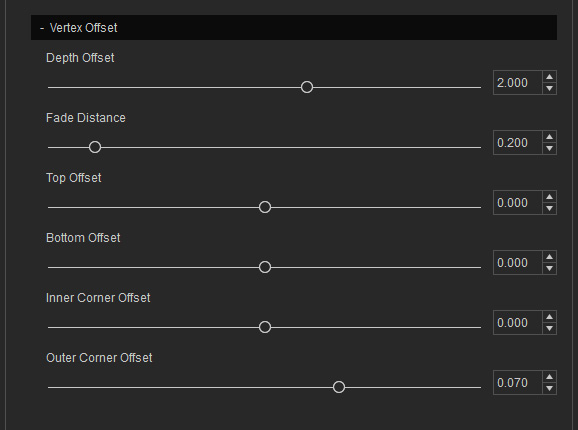

Vertex Offset

The Vertex Offset sub-section can be used to offset the Eye Occlusion mesh in order to snuggly fit the eyeballs.

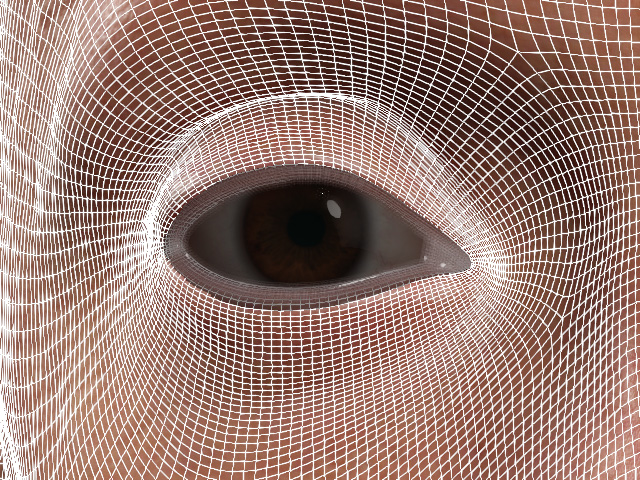

  • Depth Offset: Use this slider to adjust the depth of the entire Eye Occlusion Mesh.

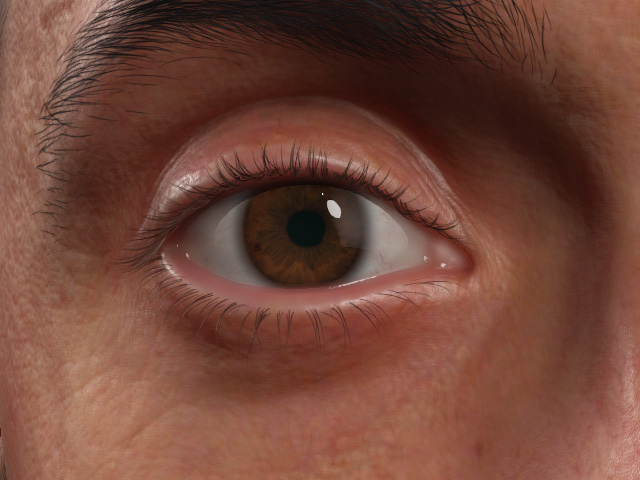

    Depth Offset = 0.500 (Default)

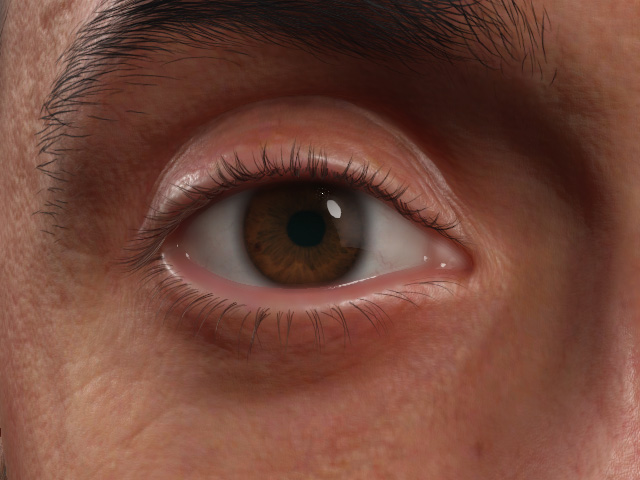

    Depth Offset = 7.500

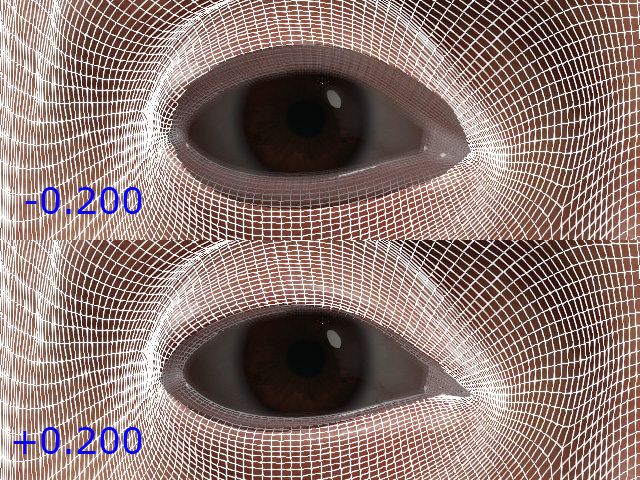

  • Top Offset

    Top Offset = 0.000

    Top Offset = -0.200 ~ 0.200

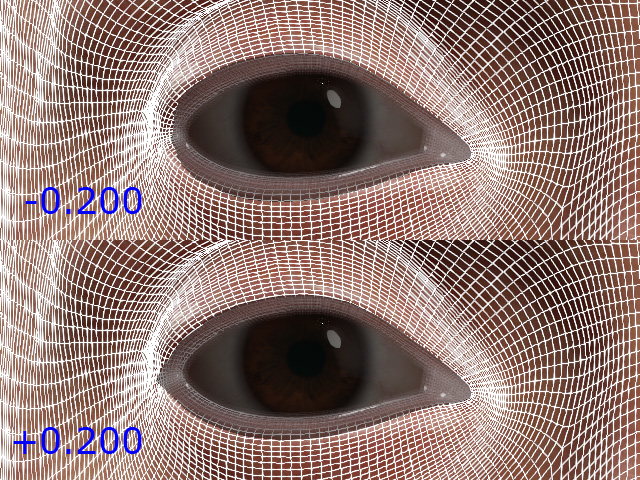

  • Bottom Offset

    Bottom Offset = 0.000

    Bottom Offset = -0.200 ~ 0.200

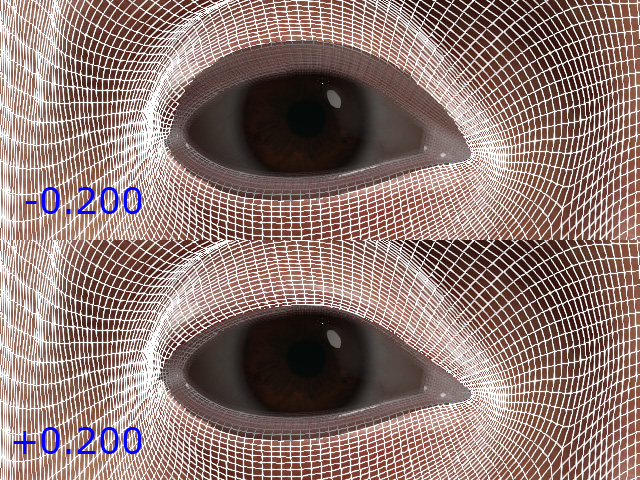

  • Inner Corner Offset

    Inner Corner Offset = 0.000

    Inner Corner Offset = -0.200 ~ 0.200

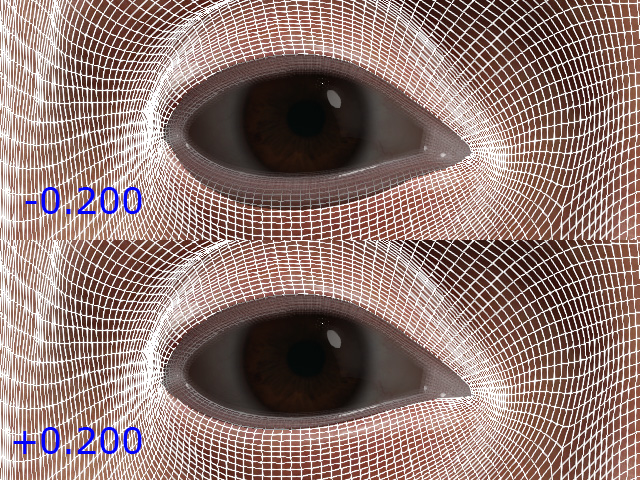

  • Outer Corner Offset

    Outer Corner Offset = 0.000

    Outer Corner Offset = -0.200 ~ 0.200
