Navigation Tools

1. Frame: There are three ways for framing the animation graph. You can select them from the drop down list by clicking the down arrow next to the icon of this button.
   • Frame: Clicking Frame will fit all of the visible graph according to the time range and value range.

   • Horizontally Frame: Clicking Horizontally Frame will fit all of the visible graph according to the time range.


   • Vertically Frame: Clicking Vertically Frame will fit all of the visible graph according to the value range.

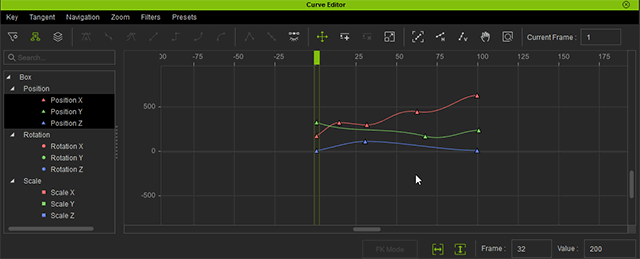

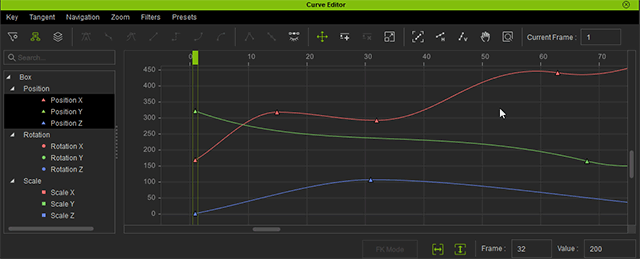

2. Pan:
   • Use the Pan mode to navigate around the viewing area of the Graph Editor.
   • Or hold Alt while in the Select mode to temporarily Pan the viewing area and let go of Alt to return to Select mode.

   • Ctrl + Scroll:
     • The mouse wheel controls the vertical scrolling of the viewing area.
     • While holding Ctrl, the mouse wheel starts to horizontally scroll the viewing area.

3. Zoom: There are four ways for zooming on the graph. You can select them from the drop down list by clicking the down arrow next to the icon of this button.
   • Zoom:
     • Use the mouse wheel to activate zoom in and zoom out.
     • The cursor position dictates the centering for the zoom.

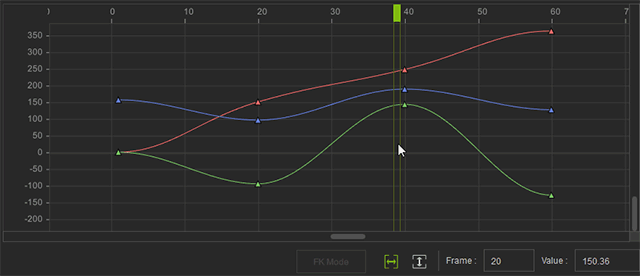

   • Horizontally Zoom: Under Horizontally Zoom mode, the use of Ctrl + mouse wheel will only contract and expand the horizontal time axis.

   • Vertically Zoom: Under Vertically Zoom mode, the use of Shift + mouse wheel will only contract and expand the vertical value axis.

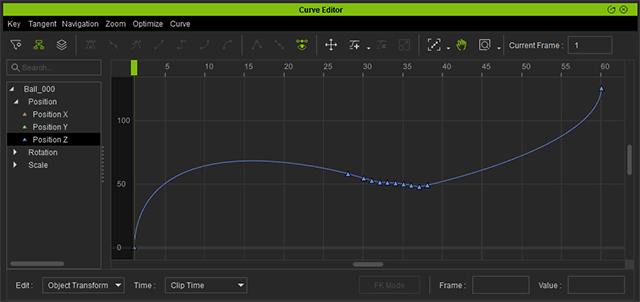

   • Zoom Region: Under Zoom Region mode, drag a marquee around the keys to zoom into.
