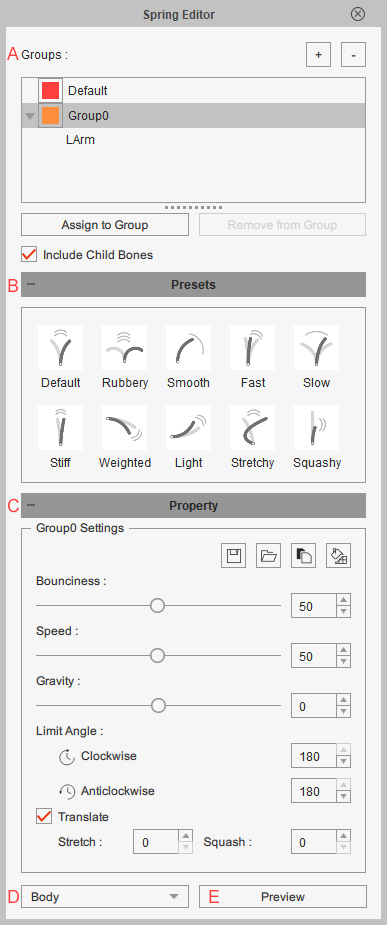

User Interface Introduction for Spring Editor

  1. ClosedGroups

    In this section, you can:

    • Add or delete spring groups.
    • Assign bones into or remove bones from the spring groups.
    • Bone-related actions can influence the child bones by ticking the Include Child Bones checkbox.

    Refer to the Grouping Spring Bones for Different Spring Effects section for more information.

  2. ClosedPresets

    The Presets list includes spring presets with different combinations of the settings in the Properties section. By selecting either one of them, you can quickly set the spring effect before previewing the result, or even change to different effects when the previewing starts.

  3. ClosedProperties

    You can manually change the Bounciness, Speed and Gravity for the spring groups. Also, change the rotation Angles and toggle the Translate spring actions.

  4. ClosedBody / Face Drop-down List

    Use this drop-down list to show the body bones or the face bones for applying spring effects.

  5. ClosedPreview

    Press down this button to start previewing the spring effect.
