Adjusting Attributes of Random Nodes

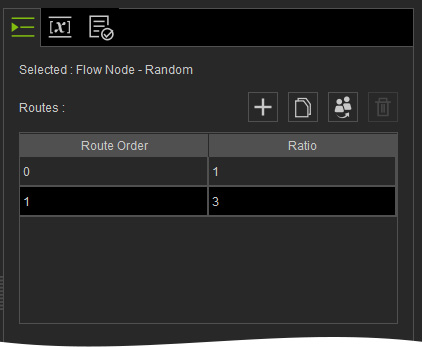

Select the Random Node in the MP Node Graph viewport, the Attribute page will display the settings of the node.

1. Add: Adds new output pin. You can click the "+" button as well.

2. Duplicate: Duplicate the selected item in the Routes list.
   1. Select an item and click the Duplicate button (multiple selection is not allowed).

   2. Duplicate Routes panel will appear, set the Count for duplication and click the Apply button.

      The specified number of items will be duplicated.

      Note that if a route is connected to the source output, the entire route will also be duplicated.

      Before	After

3. Swap Characters: Manually specify characters to swap the characters of the events associated to the selected route.

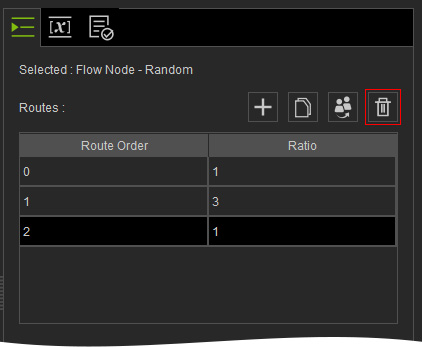

4. Remove: Removes the selected route. Multi-selection is allowed.

   Before	After

5. Route Order: The serial number for each route item.
6. Ratio: Edit this parameter to control the probability of the events linked to this Route item being triggered. The number range is from 1 to 99.

   The Ratio for all events are set to 1.	The Ratio for the middle character is set to 99.

7. Randomize Characters on Execution: The events of each route will be applied with random character on the stage.


   Before	After (Randomly swap characters with each other.)

   ** Note that it only changes the characters of the routes that are associated to the Random Node
