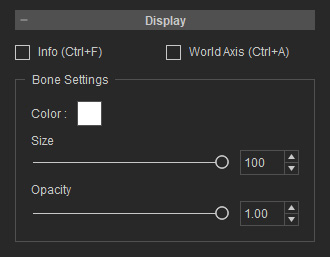

Display Section

The following display settings will only show up in the viewport and not in renders.

Info

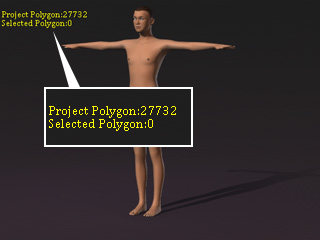

• Polygon Count: When the Polygon Count option is activated, the polygon count information of the entire project and the character shows at the upper-left corner of the viewport.

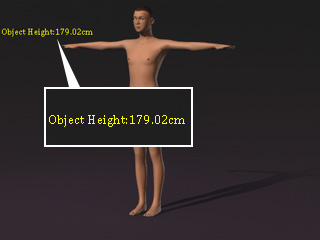

• Model Height: Activate this check box in order to show the character's height at the top-left corner of the preview window.


World Axis

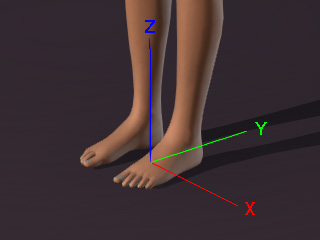

When World Axis option box is checked on, a colored axis coordinate displays on the area of origin. It is very useful when you need to input x, y, z value, or create custom Helper.

• Check/Uncheck the World Axis box to show/hide the world axis, or press Ctrl + A to toggle on/off.
• The R.G.B. color of the World Axis represent the positive X, Y, Z direction  (R=X, G=Y, B=Z)


Bone Settings

The settings in this group are used to determine the appearance of the character's bone.

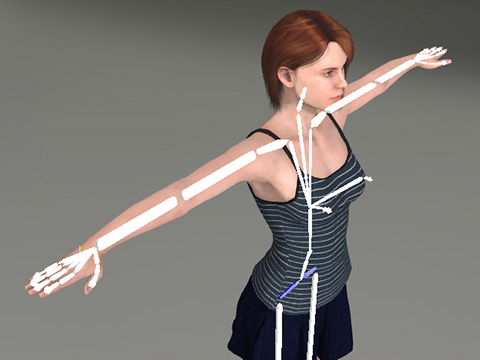

• Color:

  Color = #ffffff	Color = #0055ff

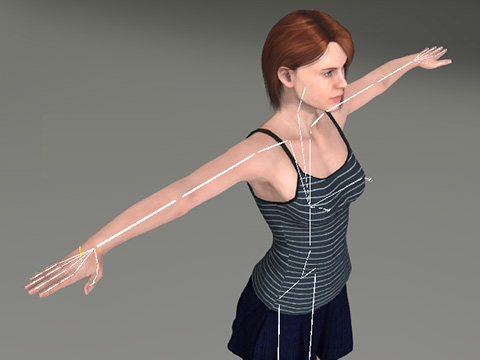

• Size:

  Size = 100	Size = 20

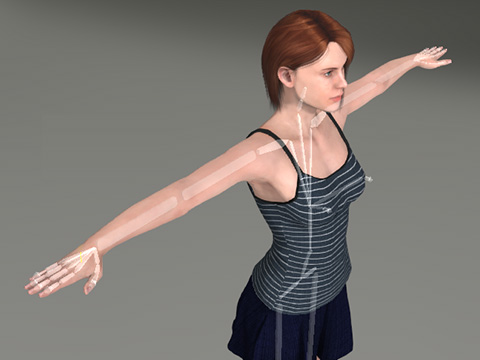

• Opacity:

  Opacity = 1.00	Opacity = 0.20
