User Interface for ALIGN POINTS Step

The DETECT JOINTS step establishes the key joint positions of the imported character using Guide Points. These points are then used to generate a full-body skeleton, which serves as the basis for generating the Align Mesh Points required for the subsequent wrapping process.



Feature

Description

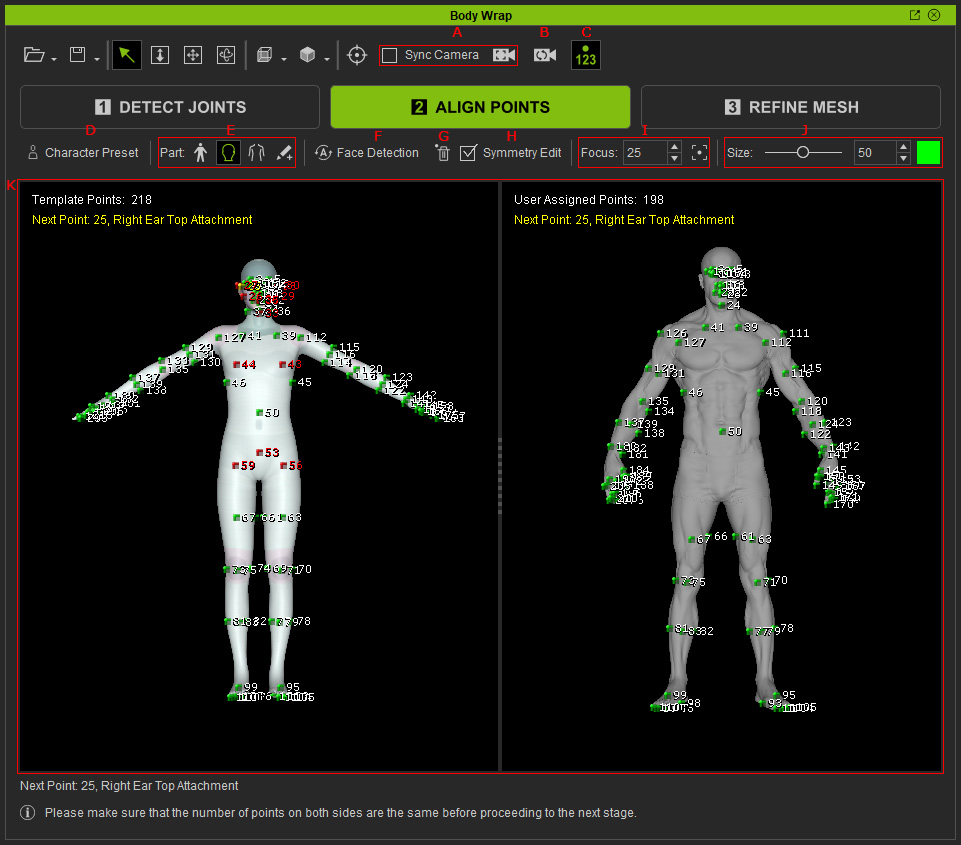

A

Sync / Calibration Camera
  • Activate the checkbox to synchronizes camera operations between the left and right viewports.
  • Click the Sync Camera button to synchronize camera operations for both views based on their current camera states.

** Note: The two viewports do not need to show the same view initially, but subsequent zoom, pan, dolly, and orbit operations are synchronized.

B

Reset Camera (Match Camera View)

Matches the right viewport's camera view to the current view of the left viewport and enables Sync Camera, allowing both viewports to share the same view and synchronize subsequent zoom, pan, dolly, and orbit operations.

C

Show / Hide Point Numbers

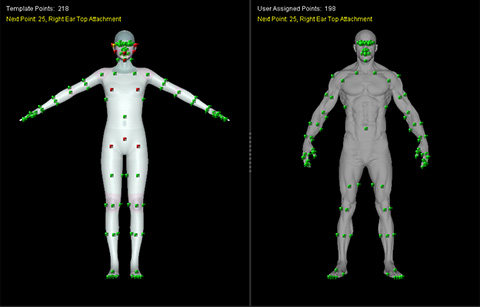

Shows or hides the numbers of the Align Points displayed in both viewports.

Show Point Numbers

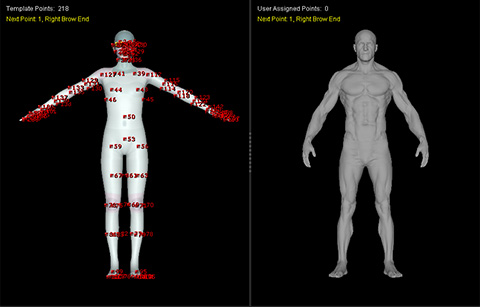

Hide Point Numbers

D

Character Preset

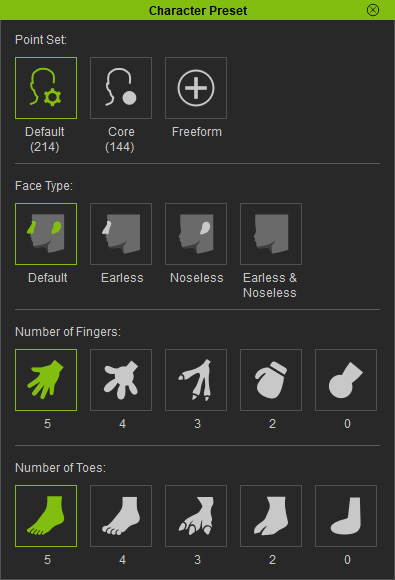

Opens a panel for selecting the Align Point preset and character template.

E

Part

Selects the point-assignment mode: Full Body, Head, Body, or Freeform. Then adjust the Align Points for both viewports.

F

Face Detection

Automatically detects and assigns Align Points on the character's face.

G

Delete Assigned Points (Clear Points)

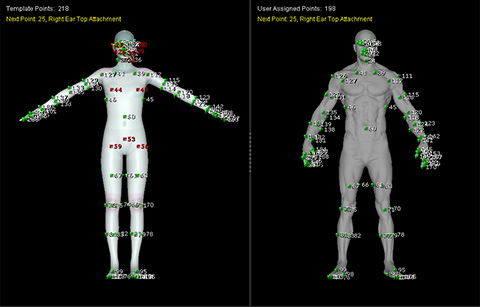

Deletes all Align Points from the right viewport and resets the manually assigned points.

Show Point Numbers

Hide Point Numbers

H

Symmetry Edit

Enables symmetrical editing so that corresponding points on both sides of the character can be adjusted together.

I

Focus

Enter an Align Point number, then click the Focus button to automatically zoom the viewport to that Align Point, making it easier to locate a specific point.

J

Point Size / Color

Adjusts the size and color of the Align Points displayed in the viewports.

K

Align Point Viewports

Displays the CC5 HD character and imported model side by side for assigning and aligning corresponding Align Points.
