User Interface Introduction for ActorMIXER

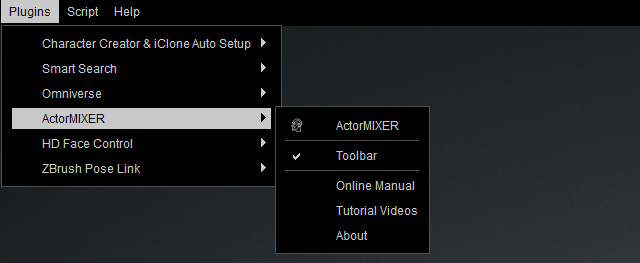

Plugins Menu

ActorMIXER

Launches the ActorMIXER panel.

Toolbar

Shows / Hides the ActorMIXER toolbar.

Online Manual

Displays the ActorMIXER Online Manual.

Tutorial Videos

Redirect to the online Tutorial Video web site for ActorMIXER.

About

Displays the Splash about the version information.

Toolbar

A

ActorMIXER

Launches the ActorMIXER panel.

B

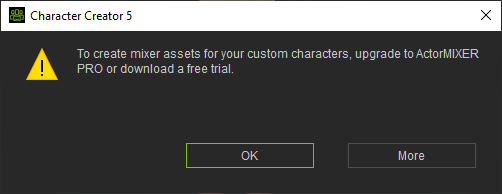

Create Mixer Assets

  • Create Mixer Assets is a feature provided in ActorMIXER Pro version.
  • Pops up a dialog. Click OK to continue using the ActorMIXER or More for surfing the ActorMIXER official web site.

C

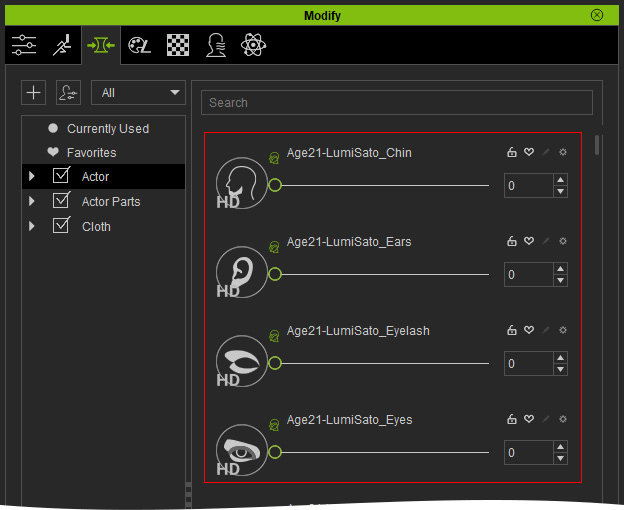

View Mixer Only

  • Enters the View Mixer Only mode.
  • The Modify > Morph tab page displays only the Mixer Sliders.

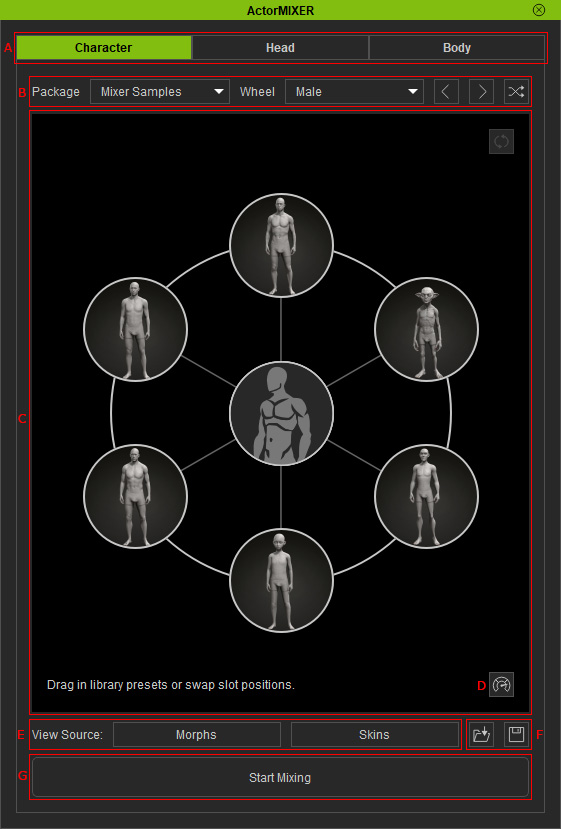

ActorMIXER Panel

A

Categories

You can choose the desired category for blending target morph shapes to the character.

B

Package and Wheel

  • Choose the desired package and its wheel layout composed of different number of targets (minimum: 3).
  • You can also choose the layout through the drop-down menu or the left and right arrow buttons.
  • Randomize Wheel Presets : Fills up the targets randomly from all target presets in the same package.

C

Wheel with Presets

  • When the blend mode starts, you can drag the green control points from the middle circle omni-directionally to blend or morph the presets to the character.
  • Reset (for mixing mode only) : Snaps the green blend point to the center of the wheel to initialize the appearance of the character.

D

Performance Checkbox

  • For better performance, deactivate the realtime result when blending. The result displays after mouse button is released.
  • It's only enabled in the Editing mode.

E

Gallery Switcher

Switches to current mixer target gallery or skin gallery.

F

Save / Load Wheel Sets

  • : Loads the wheel set (*.ccMixerLayout) previously saved.
  • : Saves active wheel set or all wheel sets (*.ccMixerLayout).
