User Interface for AI Decal Generation

Select the Decal tab in the AI Generation panel to leverage AI-based decal generation.

Function

Description

A

Dock / Undock

Double-clicking the panel caption docks the panel to the docking area or undocks it, allowing it to float above the main window.

B

Model

Select the AI model (SD1.5, SDXL, or Qwen) to generate decals with the desired texture quality. The corresponding AI models must be installed before generating textures.

C

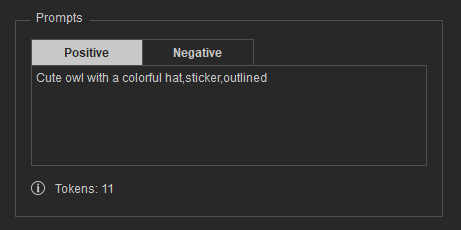

Prompts

Here you can enter positive and negative prompts to generate the decals.

D

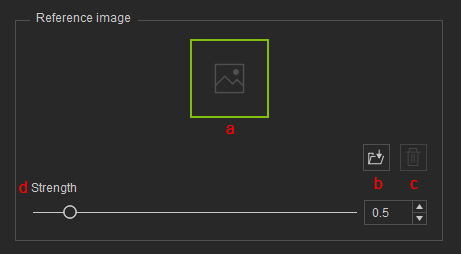

Reference Images

Loads reference images to guide AI-based texture creation.

  1. The reference image to control the texture style.
  2. Load Image: Opens a file browser to load an image into the channel.
  3. Remove Image: Deletes the channel image.
  4. Strength: Adjusts the influence of each individual reference image.

E

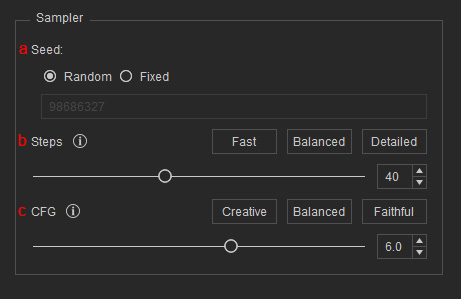

Sampler

Controls AI-generated results based on the following values:

  1. Seed: Controls the randomness of AI generation. Select “Fixed” to use the same seed and reproduce identical or similar image results.
  2. Steps: Controls how many iterations the AI runs to generate an image.
  3. CFG: Controls how strictly the AI follows your prompt.

F

Generate Decal

Generates a decal image based on the provided prompts, reference images, and sampler settings.
